Light, Telescopic and Economical


The Mini Loader for private and light professional use. Diesel, 20 hp

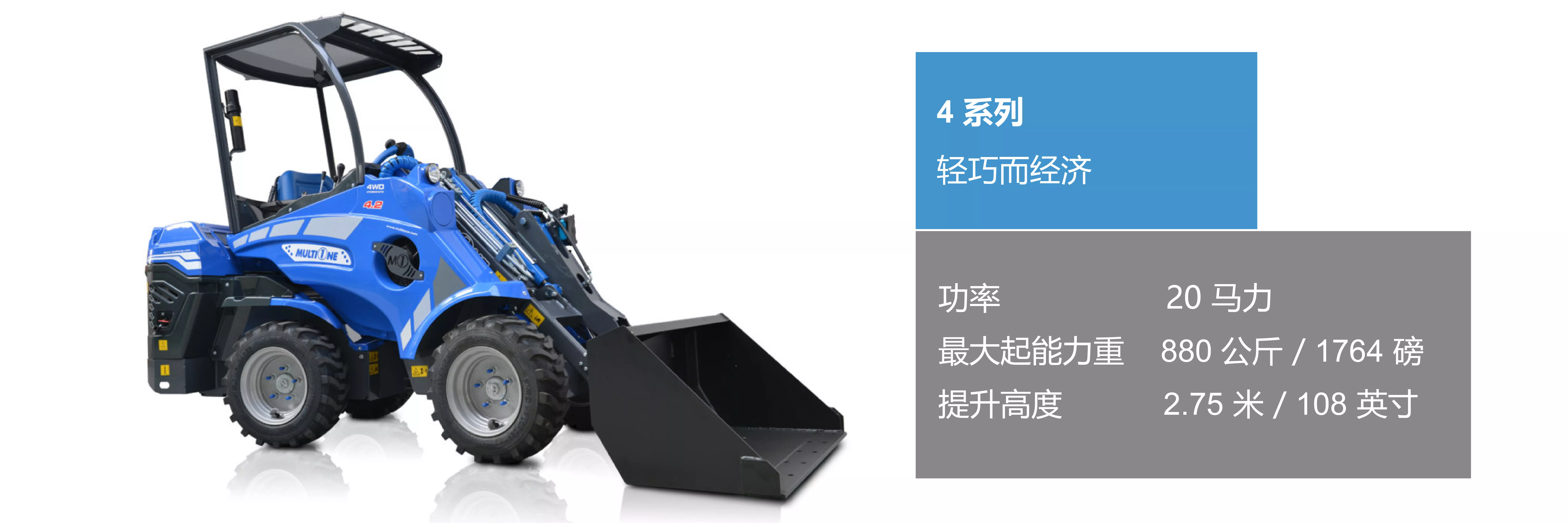

MultiOne 4 Series compact articulated mini loader  is a superb all-round machine for the development and maintenance of landscaped areas, perfect for gardeners, farming, private and light professional use.

4 SERIES PLUS:

· Telescopic boom

· Compact dimensions

· Low operating cost

· 20 hp diesel engine


  • 4.2 K



   Engine   Kubota D722, 3 cyl – 719 cc.
   Power (Iso Gross)   20 HP / 45.8 Nm @ 2600 rpm
   Fuel   Diesel
  Transmission   Hydrostatic
   Drive speed (max)   14 km/h (8.7 mph)
   Aux. hydraulic oil flow   31 l/min (8.2 GPM)
   Max lifting height   2,75 m (108 in)
   Breakout force / 50 cm   (19.7 in)   800 kg (1764 lbs)
   Turning radius: inside/outside   890 / 1890 mm (35 / 74.4 in)
   Standard tires (Tractor profile)   23×8.50-12
   Weight   990 kg (2190 lbs)
   Tipping load (w/backweights)   1020 kg (2249 lbs)
   Lifting capacity (straight and w/backweights)   820 kg (1808 lbs)
   Lifting capacity (fully articulated and w/backweights)   700 kg (1543 lbs)
   Code   C944001
